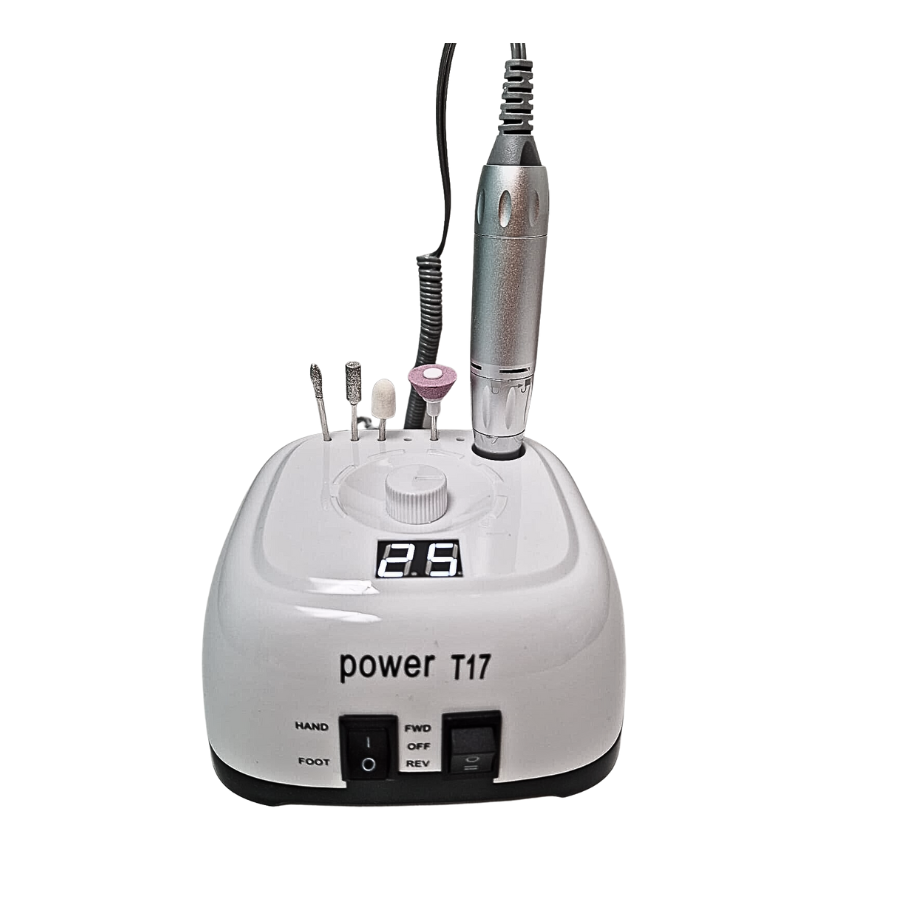

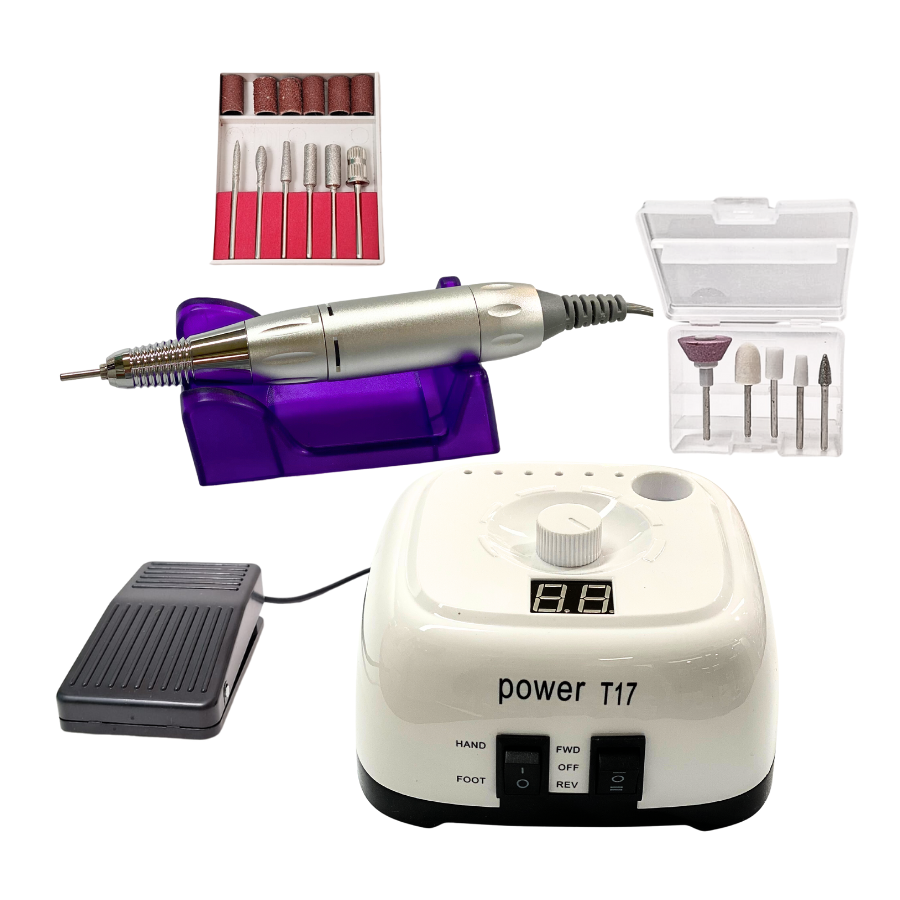

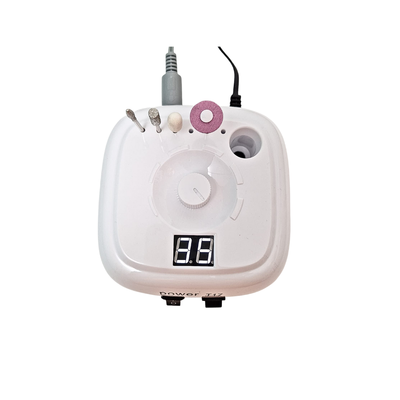

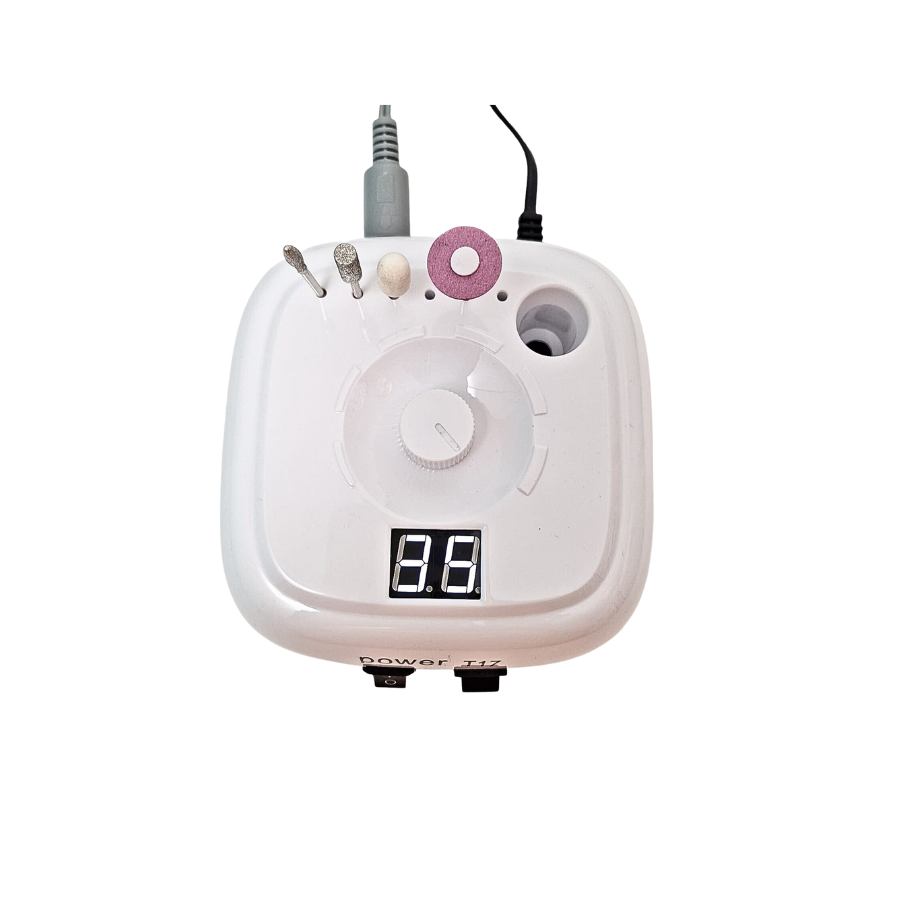

The Nail Drill - Power T17
The Power T17 Professional Electric Manicure Kit is perfect for nail technicians who need a drill that can handle any job.
Other options
Description
The Power T17 Professional Electric Manicure Kit is perfect for nail technicians who need a drill that can handle any job. With a maximum rated speed of 35,000 RPM, this drill is powerful enough to handle any nail session.
1. Installation and Wire Connection

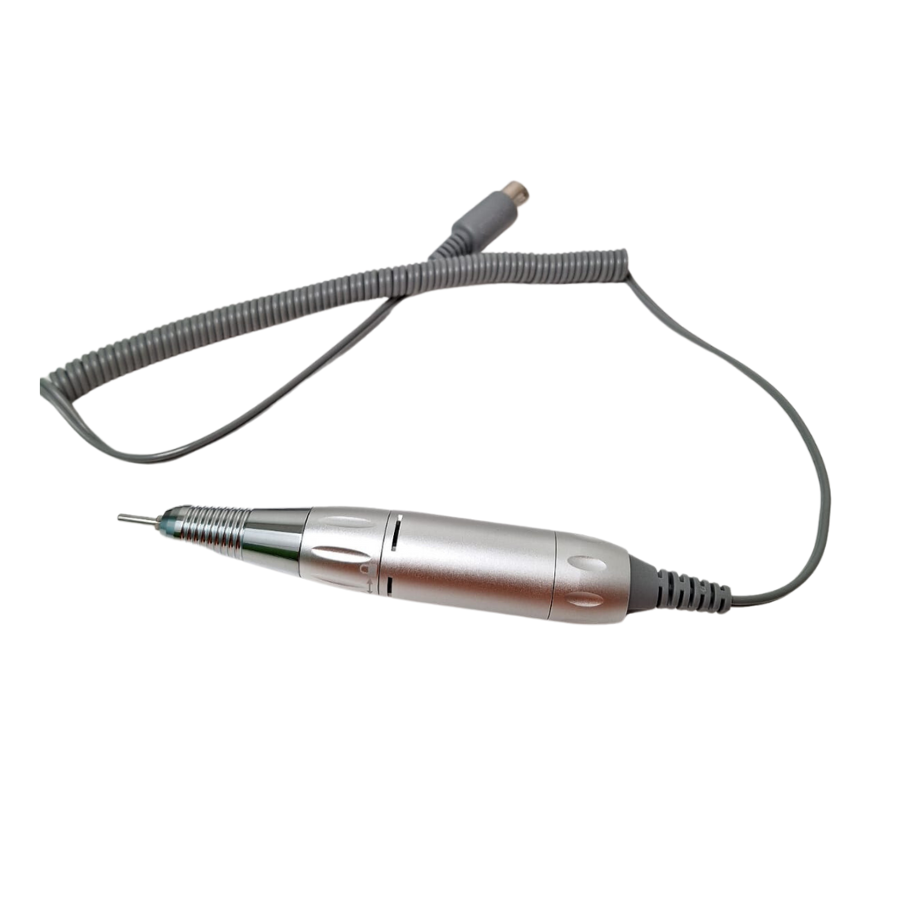

1.1 Connect the 5-pin plug of the portable grinding handpiece to the OUTPUT socket on the main unit

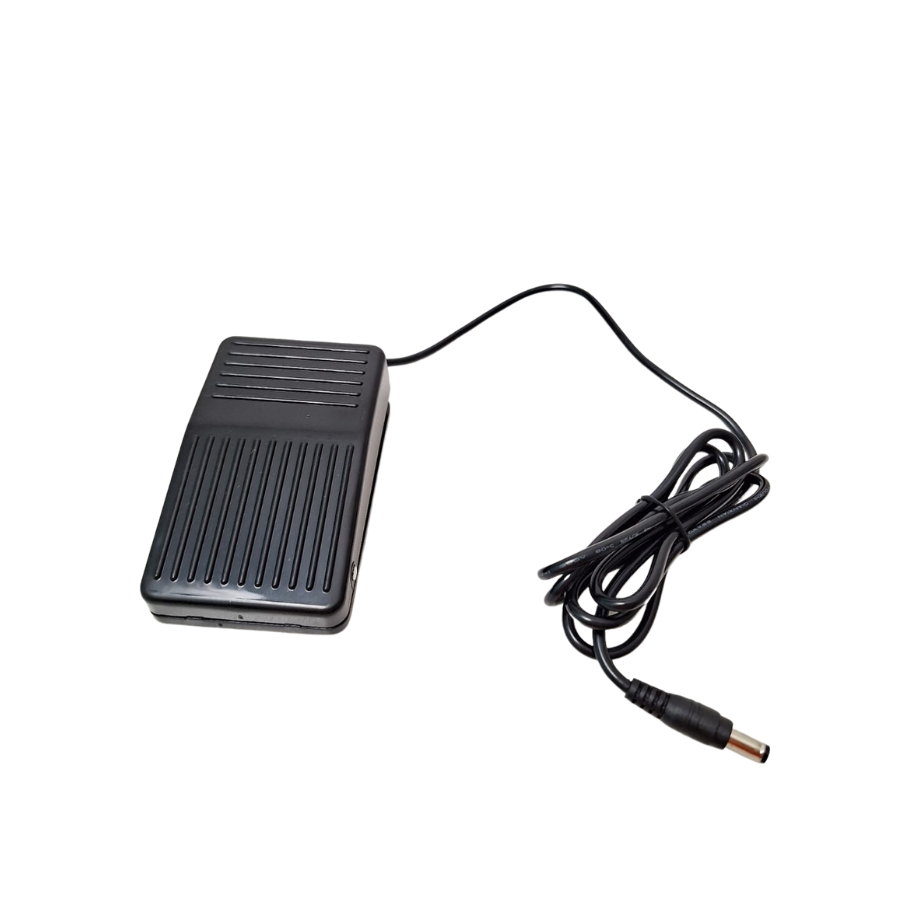

1.2 Connect the foot pedal to the “FOOT S/W” socket

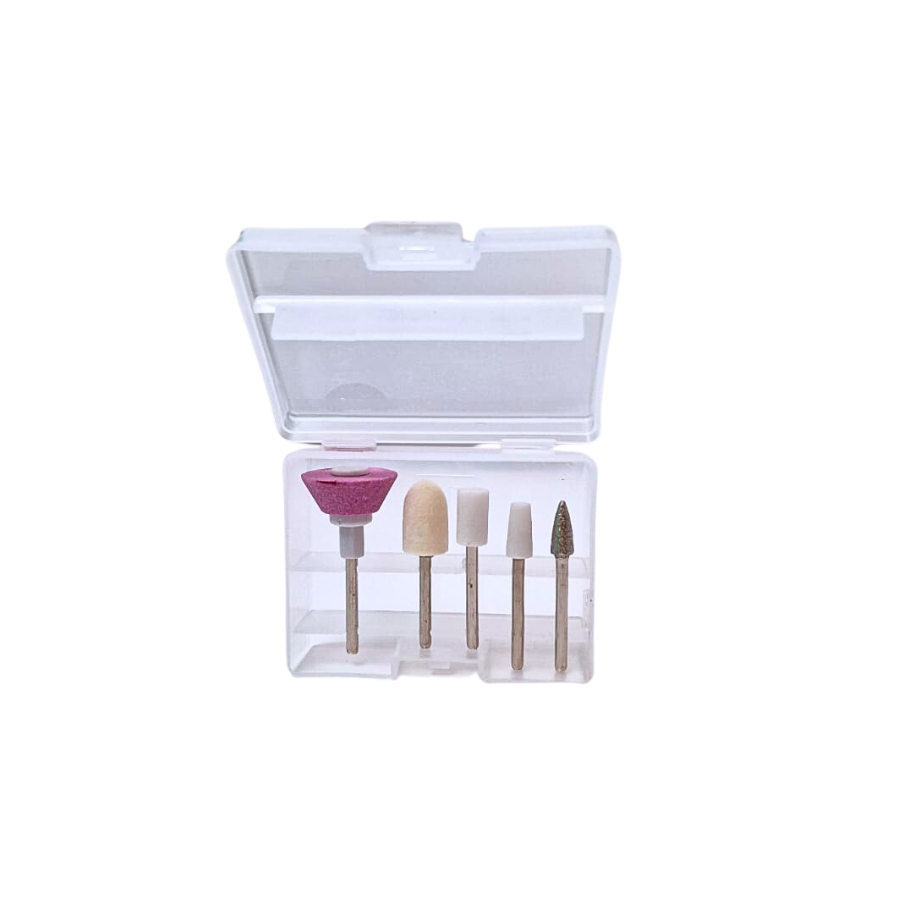

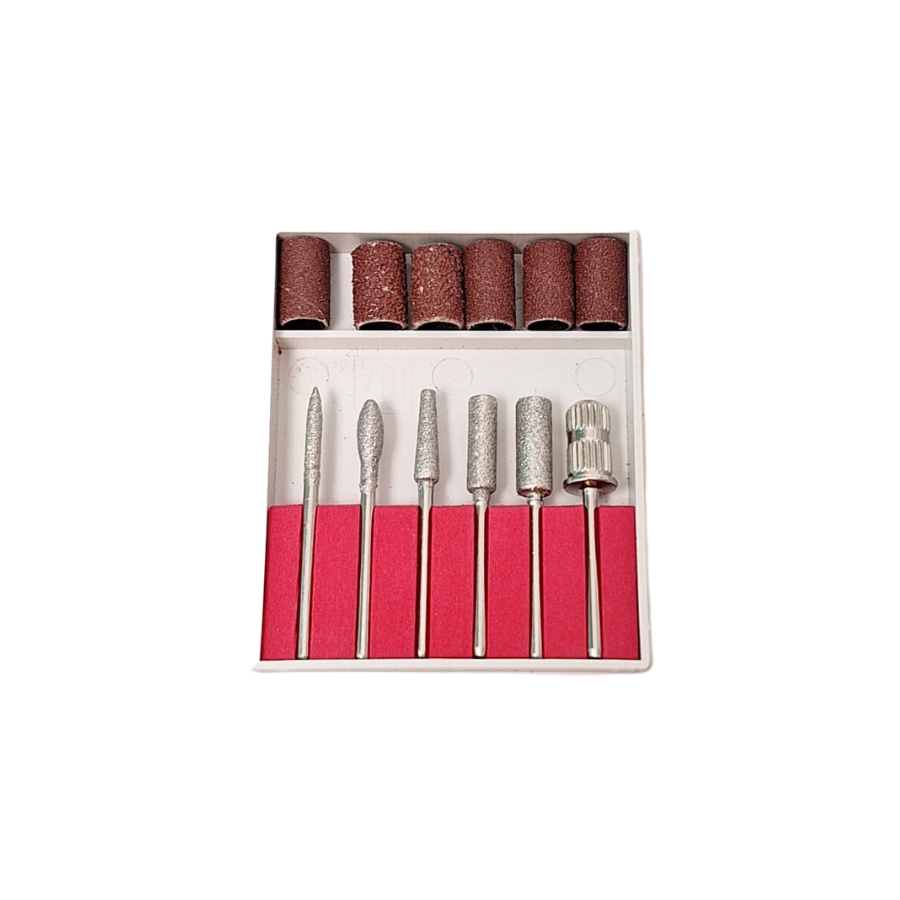

1.3 Choose a suitable drill bit according to your needs and secure it to the handpiece
1.4 Turn the speed control knob fully to the left (MIN position)
1.5 Connect the machine to the main power source
2. Operation
2.1 Press the “HAND” button for manual control. The indicator light will turn on and the handpiece will start rotating slowly
2.2 Turn the SPEED CONTROL knob to the right to increase rotation speed
2.3 When the switch is set to “FOOT”, press the foot pedal to activate the machine (foot control is optional)
2.4 You can change rotation direction:
- FWD = clockwise
- REV = counterclockwise
2.5 Adjust the speed to a suitable level based on your work
2.6 Always turn speed down to the lowest before switching rotation direction
3. Specifications
a) Main Unit (Power & Control):
Rated voltage: 100–120 V / 60 Hz or 220–240 V / 50 Hz
Rated power: 25 W
Output voltage: DC 0–18 V
b) Handpiece (Motor):
Operating voltage: DC 0–18 V
Rated current: 0–2 A
Speed range: 0–35,000 RPM
4. Instructions
4.1 Always turn the speed knob counterclockwise to minimum before turning off power
4.2 After use, place the handpiece on top of the main unit
4.3 Never unplug the 5-pin plug while the device is running
4.4 Unplug the power if the device won’t be used for a long time
4.5 Do not disassemble the machine yourself. If issues occur, contact an authorized repair center
4.6 If the power cord is damaged, it must be replaced by the manufacturer or authorized personnel to avoid danger.
Product information
Model number: 32002
Product identifier: 40320021
Weight: 1.4 kg
